Login

When a StartResultEvent with LOGIN_REQUIRED as sdkState is received in response to a StartEvent, you should initiate the Login flow.

Note: When LOGIN_REQUIRED is received after a restart, there are two valid approaches:

  • Stay Logged In (OfflineLoginEvent): if a valid offline or authorization-grant token is stored, post an OfflineLoginEvent to re-authenticate without requiring credentials. See Stay Logged In.
  • Fresh IDP login: perform a full login using getAuthorizationCode as described below.

There is no way to determine in advance which will succeed — LOGIN_REQUIRED only confirms the user is activated on the app client, not whether valid tokens are still present. The recommended approach is to attempt OfflineLoginEvent first; if it returns a status other than StatusType.OK, fall back to a fresh IDP login using the same AuthenticationMode.

This involves calling IdpSdkNativeInterface.getAuthorizationCode and supplying the user's username and password via the IdpSdkInteractionInterface callback. Follow the three-step flow in the correct sequence to ensure a successful login.

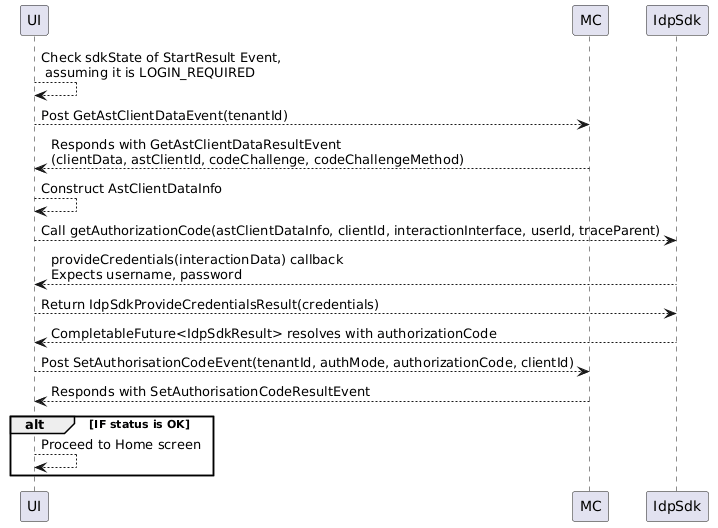

IdpSdk Login Flow Diagram​

The event flow diagram illustrates the sequence of events during the login process when using the IdpSdk directly.

Implementation Examples​

iOS/Swift​

Implement IdpSdkInteractionInterface to supply credentials when the SDK requests them. The SDK calls provideCredentials with the required input fields via interactionData.inputFieldIds — iterate over them and return a HashMap with the filled values.

Warning: provideCredentials is called from a separate thread. Your implementation must be thread-safe; any access to shared state in this scope must be synchronized. It may also be called multiple times in multi-step flows. See provideCredentials Behaviour for details on field IDs, multi-step flows, and error propagation.

IdpSdkInteractionInterface — provideCredentials (iOS/Swift)
extension IdpHandler: IdpSdkInteractionInterface {
    /// Provides credentials when requested by the IDP SDK interaction flow.
    ///
    /// - Parameter interactionData: Additional interaction context provided by the IDP SDK.
    /// - Returns: Sample credential container.
    func provideCredentials(_ interactionData: IdpSdkInteractionData) -> IdpSdkProvideCredentialsResult {
        // To cancel the flow and propagate an error, create the error and return it:
        //   let error: IdpSdkError = .init(subsystem, errorCode, , errorDescription)
        //   return .init(error: error)

        .init(credentials: ["username"       : username,
                            "password"       : password,
                            "activation-code": activationCode]
        )
    }
}

The full three-step activation flow:

Activation Flow (iOS/Swift)
func login() {
    // Step 1 — get AST client data
    let astClientData = await getAstClientData(tenantId: tenantId)

    // Step 2 — get authorization code; SDK calls provideCredentials on a background thread
    let authorizationCode = await getAuthorizationCode(
        clientId: clientId,
        astClientDataInfo: .init(astClientData: astClientData)
    )

    // Step 3 — pass authorization code to MC-SDK
    let authorizationCodeResult = await setAuthorizationCode(
        tenantId: tenantId,
        authCode: authorizationCode,
        authMode: .no,
        clientId: clientId
    )
}

...

// Functions implementing the steps

/// Requests AST client data required to obtain an authorization code.
///
/// - Parameter tenantId: Tenant identifier used to build the `KSMGetAstClientDataEvent`.
/// - Returns: `KSMGetAstClientDataResultEvent` containing AST client data and challenge information.
func getAstClientData(tenantId: String) async -> KSMGetAstClientDataResultEvent {
    let event = KSMGetAstClientDataEvent(tenantId: tenantId)
    let result = await masterController.receive(event) as! KSMGetAstClientDataResultEvent
return result
}

/// Requests an authorization code from the IDP SDK.
///
/// - Parameters:
///   - clientId: Client identifier used in the IDP authorization request.
///   - astClientDataInfo: AST client data required by the IDP SDK to build the request.
/// - Returns: Authorization code returned by the IDP SDK, or an empty string if no code is provided.
func getAuthorizationCode(clientId: String, astClientDataInfo: AstClientDataInfo) async -> String {
    // userId must be the userId of the (existing) user that we want to log in.
    await withCheckedContinuation { continuation in
        idpSdk.getAuthorizationCode(
            withAstClientData: astClientDataInfo,
            clientId: clientId,
            interactionInterface: self,
            userId: userId,
            traceParent: ""
        ) { result in
            if let code = result.authorizationCode {
                continuation.resume(returning: code)
            } else {
                continuation.resume(returning: "")
            }
        }
    }
}

/// Submits the authorization code to MCSDK.
///
/// - Parameters:
///   - tenantId: Tenant identifier used to build the `KSMSetAuthorisationCodeEvent`.
///   - authCode: Authorization code received from the IDP SDK.
///   - authMode: Authentication mode used when submitting the authorization code.
///   - clientId: Client identifier associated with the authorization request.
/// - Returns: `KSMSetAuthorisationCodeResultEvent` describing the outcome of the operation.
func setAuthorizationCode(
    tenantId: String,
    authCode: String,
    authMode: KSMAuthenticationMode,
    clientId: String
) async -> KSMSetAuthorisationCodeResultEvent {
    let event = KSMSetAuthorisationCodeEvent(
        tenantId: tenantId,
        authenticationMode: authMode,
        authorisationCode: authCode,
        clientId: clientId
    )

    let result = await masterController.receive(event) as! KSMSetAuthorisationCodeResultEvent
    return result
}

NOTE: The userId passed to getAuthorizationCode during login should be the enrolled user's identifier, obtained from the StartResultEvent or RestartResultEvent user list.

Android/Kotlin​

Implement IdpSdkInteractionInterface to supply credentials when the SDK requests them. The SDK calls provideCredentials with the required input fields via interactionData.inputFieldIds — iterate over them and return a HashMap with the filled values.

Warning: provideCredentials is called from a separate thread. Your implementation must be thread-safe; any access to shared state in this scope must be synchronized. It may also be called multiple times in multi-step flows. See provideCredentials Behaviour for details on field IDs, multi-step flows, and error propagation.

IdpSdkInteractionInterface — provideCredentials (Kotlin)
class LoginHandler {
    companion object : IdpSdkInteractionInterface {

        const val LOGIN_CLIENT = "KssIdpLogin"

        // Called by the SDK from a background thread to collect user credentials.
        // Must be thread-safe.
        override fun provideCredentials(interactionData: IdpSdkInteractionData): IdpSdkProvideCredentialsResult {
            val credentials = HashMap<String?, String?>()

            for (fieldId in interactionData.inputFieldIds) {
                when (fieldId) {
                    IdpSdkConstants.USERNAME -> credentials[fieldId] = "<username>"
                    IdpSdkConstants.PASSWORD -> credentials[fieldId] = "<password>"
                }
            }

            // To cancel the flow and propagate an error, return:
            // IdpSdkProvideCredentialsResult(IdpSdkError(subsystem, errorCode, errorDescription))

            return IdpSdkProvideCredentialsResult(credentials)
        }
    }
}

The full three-step login flow:

Login Flow (Android/Kotlin)
fun login() {
    // Step 1 — get AST client data from the MC-SDK
    val getAstClientDataEvent = GetAstClientDataEvent(IdpSdkApp.TENANT_ID)

    MasterController.getInstance()?.postEvent(getAstClientDataEvent)?.then { resultEvent ->
        when (resultEvent) {
            is GetAstClientDataResultEvent -> {
                if (resultEvent.status != StatusType.OK) {
                    Log.e(TAG, "GetAstClientData failed: ${resultEvent.errorDescription}")
                    return@then
                }

                // Step 2 — get authorization code from the IdpSdk
                val astClientDataInfo = AstClientDataInfo(
                    resultEvent.clientData,
                    resultEvent.astClientId,
                    resultEvent.codeChallenge,
                    resultEvent.codeChallengeMethod
                )

                // userId is the identifier of the enrolled user (from StartResultEvent)
                val userId: String? = StartRestartHandler.getFirstUserId()

                IdpSdkNativeInterface.getAuthorizationCode(
                    astClientDataInfo,
                    LOGIN_CLIENT,
                    this,       // IdpSdkInteractionInterface — provideCredentials called here
                    userId,
                    traceParent // optional W3C-compliant trace parent, or null
                )?.thenApply { idpSdkResult ->
                    if (idpSdkResult.hasError()) {
                        Log.e(TAG, "getAuthorizationCode failed: ${idpSdkResult.idpSdkError}")
                        return@thenApply
                    }

                    // Step 3 — pass the authorization code to the MC-SDK
                    val authorizationCode = idpSdkResult.authorizationCode
                    val setEvent = SetAuthorisationCodeEvent(
                        IdpSdkApp.TENANT_ID,
                        AuthenticationMode.BIOMETRIC,
                        authorizationCode,
                        LOGIN_CLIENT
                    )

                    MasterController.getInstance()?.postEvent(setEvent)?.then { setResult ->
                        when (setResult) {
                            is SetAuthorisationCodeResultEvent -> {
                                if (setResult.status == StatusType.OK) {
                                    Log.i(TAG, "Login successful")
                                } else {
                                    Log.e(TAG, "SetAuthorisationCode failed: ${setResult.errorDescription}")
                                }
                            }
                            else -> error("Unexpected result for SetAuthorisationCodeEvent")
                        }
                    }
                }
            }
            else -> error("Unexpected result for GetAstClientDataEvent")
        }
    }
}

NOTE: The userId passed to getAuthorizationCode during login should be the enrolled user's identifier, obtained from the StartResultEvent or RestartResultEvent user list.

Request Parameters​

The following credential fields are requested by the IdpSdk during login via provideCredentials:

IdpSdkConstants.USERNAME — the user's username
IdpSdkConstants.PASSWORD — the user's password

The clientId passed to getAuthorizationCode is provided by the KOBIL IDP services (e.g. KssIdpLogin).

Important Notes​

For more information about MC-SDK event usage during IdpSdk flows, please refer to GetAstClientData and SetAuthorisationCode.

Response Handling (iOS/Swift)​

IdpSdkNativeInterface.getAuthorizationCode returns a CompletableFuture<IdpSdkResult>. Check idpSdkResult.hasError() before accessing idpSdkResult.authorizationCode.

In response to the SetAuthorisationCodeEvent, the MC-SDK sends a SetAuthorisationCodeResultEvent with the appropriate status.

Response Handling (Android/Kotlin)​

IdpSdkNativeInterface.getAuthorizationCode returns a CompletableFuture<IdpSdkResult>. Check idpSdkResult.hasError() before accessing idpSdkResult.authorizationCode.

In response to the SetAuthorisationCodeEvent, the MC-SDK sends a SetAuthorisationCodeResultEvent with the appropriate status.
