Add User
Adding a user is not a distinct flow — it is the Activation flow performed when at least one user is already enrolled on the device. You can identify this situation by the sdkState in the StartResultEvent: when another user is already activated, the state will be LOGIN_REQUIRED rather than ACTIVATION_REQUIRED. Performing an activation in this state enrolls an additional user.
Before proceeding, you must obtain an activation code for the new user. Refer to the User Activities API documentation for step-by-step instructions on generating this activation code for testing purposes.

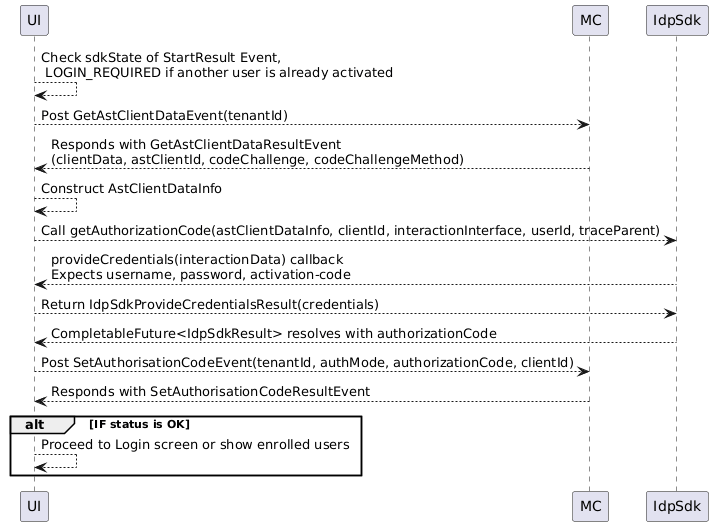

IdpSdk Add User Flow Diagram
The event flow diagram illustrates the sequence of events during the add user process when using the IdpSdk directly.
Implementation Examples
iOS/Swift
Adding a user reuses the same IdpSdkHandler pattern as activation. The SDK calls provideCredentials with the required input fields via interactionData.inputFieldIds — iterate over them and return a Dictionary with the filled values.
Warning:
provideCredentialsis called from a separate thread. Your implementation must be thread-safe; any access to shared state in this scope must be synchronized. It may also be called multiple times in multi-step flows. See provideCredentials Behaviour for details on field IDs, multi-step flows, and error propagation.
extension IdpHandler: IdpSdkInteractionInterface {
/// Provides credentials when requested by the IDP SDK interaction flow.
///
/// - Parameter interactionData: Additional interaction context provided by the IDP SDK.
/// - Returns: Sample credential container.
func provideCredentials(_ interactionData: IdpSdkInteractionData) -> IdpSdkProvideCredentialsResult {
// To cancel the flow and propagate an error, create the error and return it:
// let error: IdpSdkError = .init(subsystem, errorCode, , errorDescription)
// return .init(error: error)
.init(credentials: ["username" : username,
"password" : password,
"activation-code": activationCode]
)
}
}
The full three-step activation flow:
func addUser() {
// Step 1 — get AST client data
let astClientData = await getAstClientData(tenantId: tenantId)
// Step 2 — get authorization code; SDK calls provideCredentials on a background thread
let authorizationCode = await getAuthorizationCode(
clientId: clientId,
astClientDataInfo: .init(astClientData: astClientData)
)
// Step 3 — pass authorization code to MC-SDK
let authorizationCodeResult = await setAuthorizationCode(
tenantId: tenantId,
authCode: authorizationCode,
authMode: .no,
clientId: clientId
)
}
...
// Functions implementing the steps
/// Requests AST client data required to obtain an authorization code.
///
/// - Parameter tenantId: Tenant identifier used to build the `KSMGetAstClientDataEvent`.
/// - Returns: `KSMGetAstClientDataResultEvent` containing AST client data and challenge information.
func getAstClientData(tenantId: String) async -> KSMGetAstClientDataResultEvent {
let event = KSMGetAstClientDataEvent(tenantId: tenantId)
let result = await masterController.receive(event) as! KSMGetAstClientDataResultEvent
return result
}
/// Requests an authorization code from the IDP SDK.
///
/// - Parameters:
/// - clientId: Client identifier used in the IDP authorization request.
/// - astClientDataInfo: AST client data required by the IDP SDK to build the request.
/// - Returns: Authorization code returned by the IDP SDK, or an empty string if no code is provided.
func getAuthorizationCode(clientId: String, astClientDataInfo: AstClientDataInfo) async -> String {
// userId must be the already enrolled user's userId, so the SDK can
// assicuate the new enrollment with the existing device binding.
await withCheckedContinuation { continuation in
idpSdk.getAuthorizationCode(
withAstClientData: astClientDataInfo,
clientId: clientId,
interactionInterface: self,
userId: userId,
traceParent: ""
) { result in
if let code = result.authorizationCode {
continuation.resume(returning: code)
} else {
continuation.resume(returning: "")
}
}
}
}
/// Submits the authorization code to MCSDK.
///
/// - Parameters:
/// - tenantId: Tenant identifier used to build the `KSMSetAuthorisationCodeEvent`.
/// - authCode: Authorization code received from the IDP SDK.
/// - authMode: Authentication mode used when submitting the authorization code.
/// - clientId: Client identifier associated with the authorization request.
/// - Returns: `KSMSetAuthorisationCodeResultEvent` describing the outcome of the operation.
func setAuthorizationCode(
tenantId: String,
authCode: String,
authMode: KSMAuthenticationMode,
clientId: String
) async -> KSMSetAuthorisationCodeResultEvent {
let event = KSMSetAuthorisationCodeEvent(
tenantId: tenantId,
authenticationMode: authMode,
authorisationCode: authCode,
clientId: clientId
)
let result = await masterController.receive(event) as! KSMSetAuthorisationCodeResultEvent
return result
}
Android/Kotlin
Adding a user reuses the same IdpSdkInteractionInterface pattern as activation. The SDK calls provideCredentials with the required input fields via interactionData.inputFieldIds — iterate over them and return a HashMap with the filled values.
Warning:
provideCredentialsis called from a separate thread. Your implementation must be thread-safe; any access to shared state in this scope must be synchronized. It may also be called multiple times in multi-step flows. See provideCredentials Behaviour for details on field IDs, multi-step flows, and error propagation.
class AddUserHandler {
companion object : IdpSdkInteractionInterface {
const val ENROLLMENT_CLIENT = "KssIdpEnrollment"
// Called by the SDK from a background thread to collect new user's credentials.
// Must be thread-safe.
override fun provideCredentials(interactionData: IdpSdkInteractionData): IdpSdkProvideCredentialsResult {
val credentials = HashMap<String?, String?>()
for (fieldId in interactionData.inputFieldIds) {
when (fieldId) {
IdpSdkConstants.USERNAME -> credentials[fieldId] = "<new-username>"
IdpSdkConstants.PASSWORD -> credentials[fieldId] = "<new-password>"
IdpSdkConstants.ACTIVATION_CODE -> credentials[fieldId] = "<activation-code>"
}
}
// To cancel the flow and propagate an error, return:
// IdpSdkProvideCredentialsResult(IdpSdkError(subsystem, errorCode, errorDescription))
return IdpSdkProvideCredentialsResult(credentials)
}
}
}
The full three-step add user flow:
fun addUser() {
// Step 1 — get AST client data from the MC-SDK
val getAstClientDataEvent = GetAstClientDataEvent(IdpSdkApp.TENANT_ID)
MasterController.getInstance()?.postEvent(getAstClientDataEvent)?.then { resultEvent ->
when (resultEvent) {
is GetAstClientDataResultEvent -> {
if (resultEvent.status != StatusType.OK) {
Log.e(TAG, "GetAstClientData failed: ${resultEvent.errorDescription}")
return@then
}
// Step 2 — get authorization code from the IdpSdk
val astClientDataInfo = AstClientDataInfo(
resultEvent.clientData,
resultEvent.astClientId,
resultEvent.codeChallenge,
resultEvent.codeChallengeMethod
)
// Pass the existing enrolled user's userId so the SDK can associate
// the new enrollment with the existing device binding.
// Pass null if this is the very first user on the device.
val userId: String? = StartRestartHandler.getFirstUserId()
IdpSdkNativeInterface.getAuthorizationCode(
astClientDataInfo,
ENROLLMENT_CLIENT,
this, // IdpSdkInteractionInterface — provideCredentials called here
userId,
traceParent // optional W3C-compliant trace parent, or null
)?.thenApply { idpSdkResult ->
if (idpSdkResult.hasError()) {
Log.e(TAG, "getAuthorizationCode failed: ${idpSdkResult.idpSdkError}")
return@thenApply
}
// Step 3 — pass the authorization code to the MC-SDK
val authorizationCode = idpSdkResult.authorizationCode
val setEvent = SetAuthorisationCodeEvent(
IdpSdkApp.TENANT_ID,
AuthenticationMode.BIOMETRIC,
authorizationCode,
ENROLLMENT_CLIENT
)
MasterController.getInstance()?.postEvent(setEvent)?.then { setResult ->
when (setResult) {
is SetAuthorisationCodeResultEvent -> {
if (setResult.status == StatusType.OK) {
Log.i(TAG, "Add user successful")
} else {
Log.e(TAG, "SetAuthorisationCode failed: ${setResult.errorDescription}")
}
}
else -> error("Unexpected result for SetAuthorisationCodeEvent")
}
}
}
}
else -> error("Unexpected result for GetAstClientDataEvent")
}
}
}
Request Parameters
The following credential fields are requested by the IdpSdk during add user via provideCredentials:
IdpSdkConstants.USERNAME — the new user's username
IdpSdkConstants.PASSWORD — the new user's desired password
IdpSdkConstants.ACTIVATION_CODE — the one-time activation code for the new user
The clientId passed to getAuthorizationCode is provided by the KOBIL IDP services (e.g. KssIdpEnrollment).
Important Notes
For more information about MC-SDK event usage during IdpSdk flows, please refer to GetAstClientData and SetAuthorisationCode.
Response Handling (iOS/Swift)
IdpSdkService's getAuthorizationCode returns an IdpSdkResult. Check its hasError() function before accessing its member authorizationCode.
In response to the KSMSetAuthorisationCodeEvent, the MC-SDK sends a KSMSetAuthorisationCodeResultEvent with the appropriate status.
Response Handling (Android/Kotlin)
IdpSdkNativeInterface.getAuthorizationCode returns a CompletableFuture<IdpSdkResult>. Check idpSdkResult.hasError() before accessing idpSdkResult.authorizationCode.
In response to the SetAuthorisationCodeEvent, the MC-SDK sends a SetAuthorisationCodeResultEvent with the appropriate status.
